Sharing Animations Between Multiple Characters With the Same Skeleton

3D
21

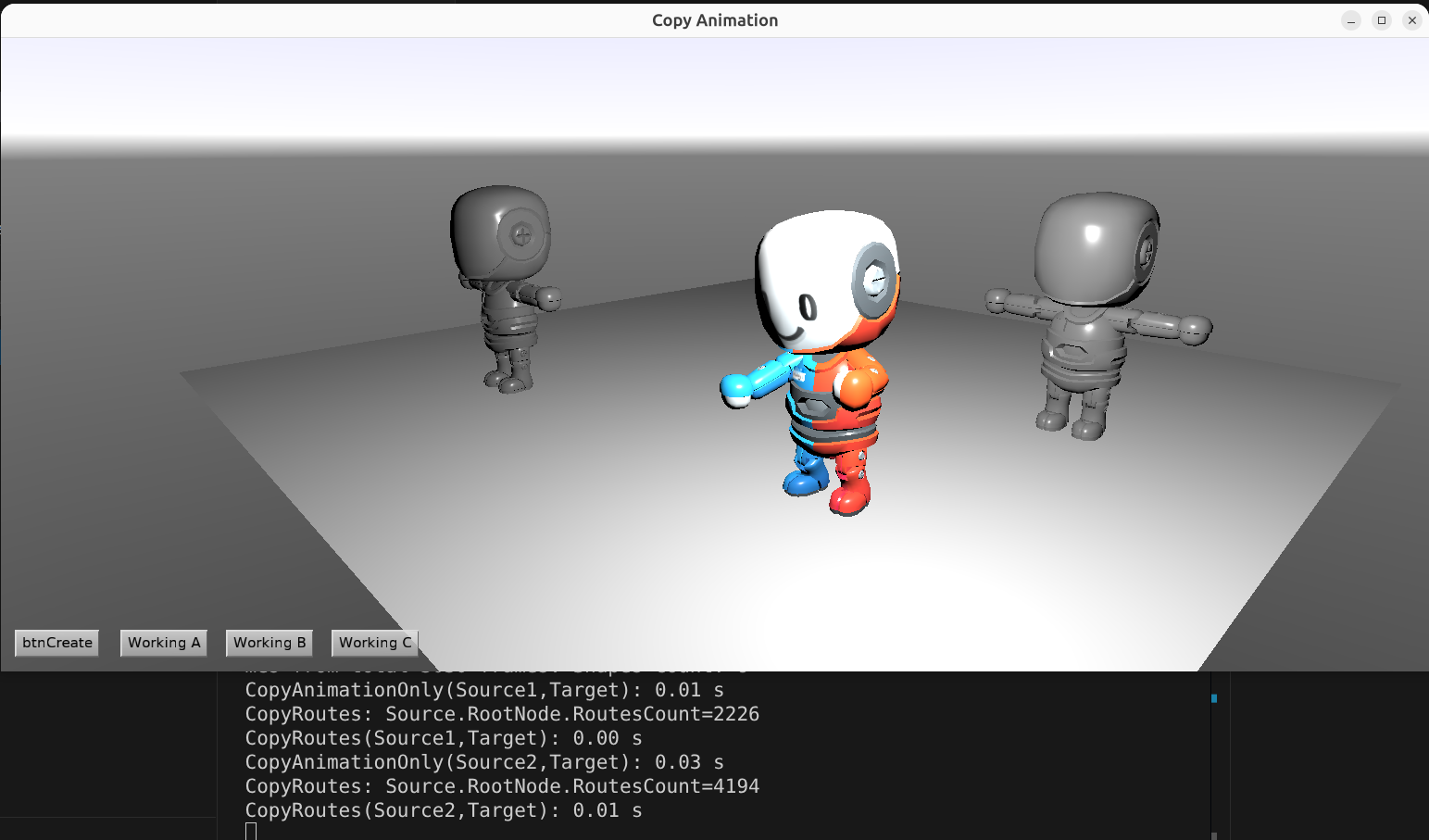

image1543×907 147 KB

Hello,

I know it’s been 4 months since the last post in this thread – well, my TODO list is long, but I never forget:)

@Hamid I hope this thread, and in particular question above “why is route copy so slow”, is still relevant. I managed to reduce the time of your animation copying 100x, to nearly zero (from 4.92 sec → 0.05 sec)!

For context, I used latest Castle Game Engine with FPC 3.2.2 and tested on Linux/x86_64. (I only needed to add {$mode delphi} at the top of GameViewMain to compile your testcase.) The times you will experience (I think you use Delphi on Windows) may differ somewhat, but the “order of magnitude improvement” should be the same.

0. Initial measurement

I used our Timer to easily measure time,

procedure TViewMain.onbtnCreateClick(ASender: TObject);
var
  T: TTimerResult;
begin
  T := Timer;
  CopyAnimationOnly(Source1,Target);
  WritelnLog('CopyAnimationOnly(Source1,Target): %f s', [T.ElapsedTime]);

  T := Timer;
  CopyRoutes(Source1,Target);
  WritelnLog('CopyRoutes(Source1,Target): %f s', [T.ElapsedTime]);

  T := Timer;
  CopyAnimationOnly(Source2,Target);
  WritelnLog('CopyAnimationOnly(Source2,Target): %f s', [T.ElapsedTime]);

  T := Timer;
  CopyRoutes(Source2,Target);
  WritelnLog('CopyRoutes(Source2,Target): %f s', [T.ElapsedTime]);
end;

Before any modifications, the sequence in onbtnCreateClick is indeed slow:

CopyAnimationOnly(Source1,Target): 0.32 s
CopyRoutes(Source1,Target): 0.15 s
CopyAnimationOnly(Source2,Target): 3.67 s
CopyRoutes(Source2,Target): 0.78 s

1. First, let’s optimize CopyAnimationOnly calls:

  • The CopyAnimationOnly is expensive but it doesn’t have to be. It calls multiple times Target.RootNode.AddChildren which does a heavy processing at the end.

  • Solution: call Target.BeginChangesSchedule; at the beginning of onbtnCreateClick and then call Target.EndChangesSchedule at the end. This makes all Target.RootNode.AddChildren in-between happen much faster, they will delay the “big expensive processing” to Target.EndChangesSchedule, so it will happen only once.

  • To have most reliable code, call Target.EndChangesSchedule in a finally section, to make sure it is performed even in case of exception. The Begin/EndChangesSchedule calls must always match, or the regular scene updates may not have the necessary effect.

This gives great speedup to the two CopyAnimationOnly calls (and doesn’t change the two CopyRoutes calls, as expected):

CopyAnimationOnly(Source1,Target): 0.01 s
CopyRoutes(Source1,Target): 0.14 s
CopyAnimationOnly(Source2,Target): 0.03 s
CopyRoutes(Source2,Target): 0.75 s

2. Let’s optimize CopyRoute now:

In CopyRoute, the expensive part is Target.RootNode.TryFindNodeByName, called 2x for 6300+ routes. This can be optimized a lot: our Target.RootNode.TryFindNodeByName naively assumes that everything in the nodes graph potentially changes every time. But that’s not true, we can actually build a trivial fast map name->node at the beginning CopyRoute and then just use this map thousands of times.

I added a utility to the engine to do this (you will need to update the engine to the latest version to have this). In effect, you do once

NodesMap := Target.RootNode.CreateNodeNamesMap(false);

and then query the dictionary multiple times like

if not NodesMap.TryGetValue(R.SourceNode.X3DName, NewSourceNode) then
  Continue;

There’s no need to do now TryFindNodeByName.

Now I have almost zero time:)

CopyAnimationOnly(Source1,Target): 0.01 s
CopyRoutes(Source1,Target): 0.00 s
CopyAnimationOnly(Source2,Target): 0.03 s
CopyRoutes(Source2,Target): 0.01 s

Testing in “release” and final notes

  1. As one tiny additional thing, I tested building in “release” mode. This changes 2nd CopyAnimationOnly(Source2,Target) time from 0.03 s to 0.02 s (with more precision, the new number is 0.017347 s). More testing, without rounding times, would be good to really compare the gain.

    But at this point you probably want to just apply these optimizations to your real application and see much they help there :slight_smile: Just be sure to actually test your version also with “release” for maximum speed.

The complete resulting file is here: Optimized copying of animation nodes + routes, see https://forum.castle-engine.io/t/sharing-animations-between-multiple-characters-with-the-same-skeleton/2094/20 · GitHub . In summary:

  • I modified CopyRoutes to use Target.RootNode.CreateNodeNamesMap (once) and then, in a loop, NodesMap.TryGetValue (instead of Target.RootNode.TryFindNodeByName).
  • I modified onbtnCreateClick to do Target.BeginChangesSchedule + Target.EndChangesSchedule and do time measurements using Timer.
  • For extra precision of times display, use %.6f instead of %f.
2 Likes
22

Hi,

Thank you so much for not forgetting about this issue and for taking the time to investigate it after all these months.

I really appreciate the detailed analysis and the optimizations you made. A 100x improvement is impressive! I’ll definitely go through your changes and test them.

To be honest, I’ve become a bit discouraged with game development (and, lately, with building anything at all), so I haven’t touched this project for quite some time. Still, your work motivates me to take another look at it.

In my original tests, the biggest performance issue was with FPC, especially on Android. At the moment I don’t have access to Delphi to compare the results there, but I can test it on Android and see how much these optimizations help.

Thanks again for your effort and for coming back to this thread. I really appreciate it!

1 Like
23

I tested it today, and it’s fantastic! Thank you so much for your work.

1 Like
