How good is CGE? Blender Cycles vs CGE

1

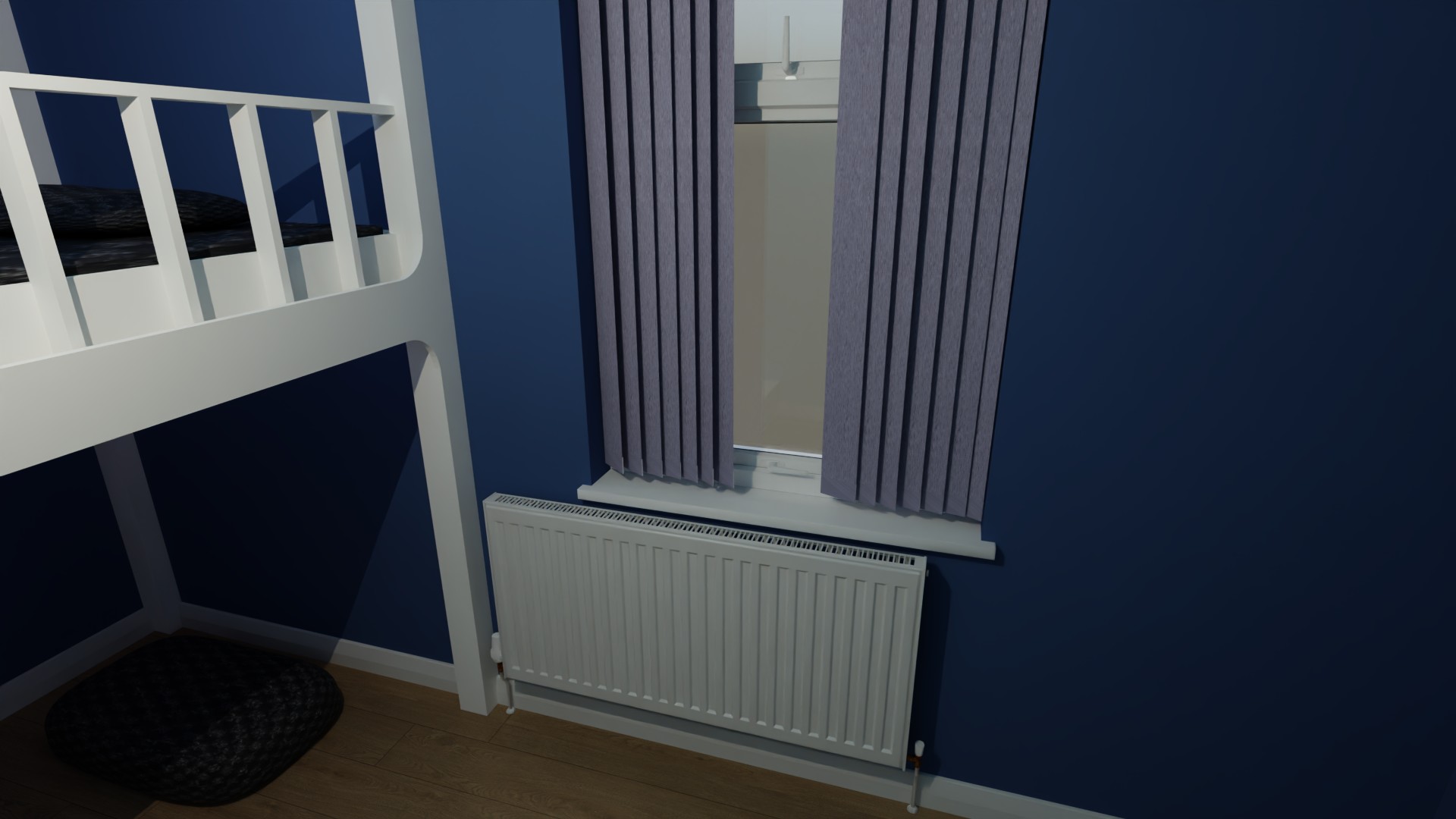

Quickly ported one of my blender projects to Castle Engine, it worked out-of-the-box without changes. Of course every game engine has to render fast, so some sacrifices need to be done… yet the difference is not very big. I still need to find antialiasing and a way to make glass more glass-like, and a few other things. But with every new feature I learn about CGE, I’m even more confident that this engine was a good choice for my project. (And it’s pascal)

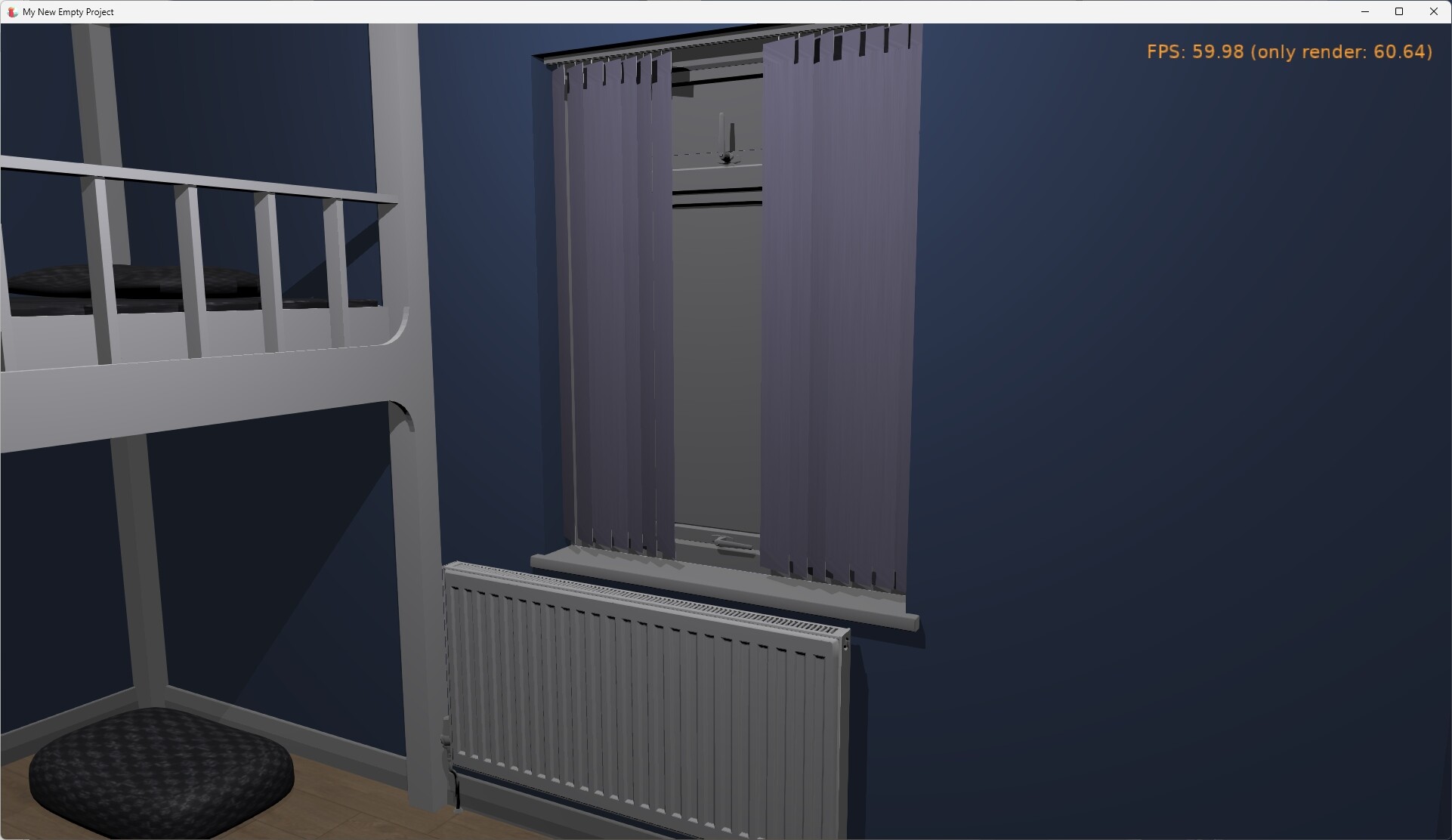

window
window1920×1080 168 KB

window_in_game
window_in_game1922×1112 144 KB

2 Likes
2

This is cool comparison. Thank you very much for the good words and screenshots!

3

Hi DiggiDoggi,

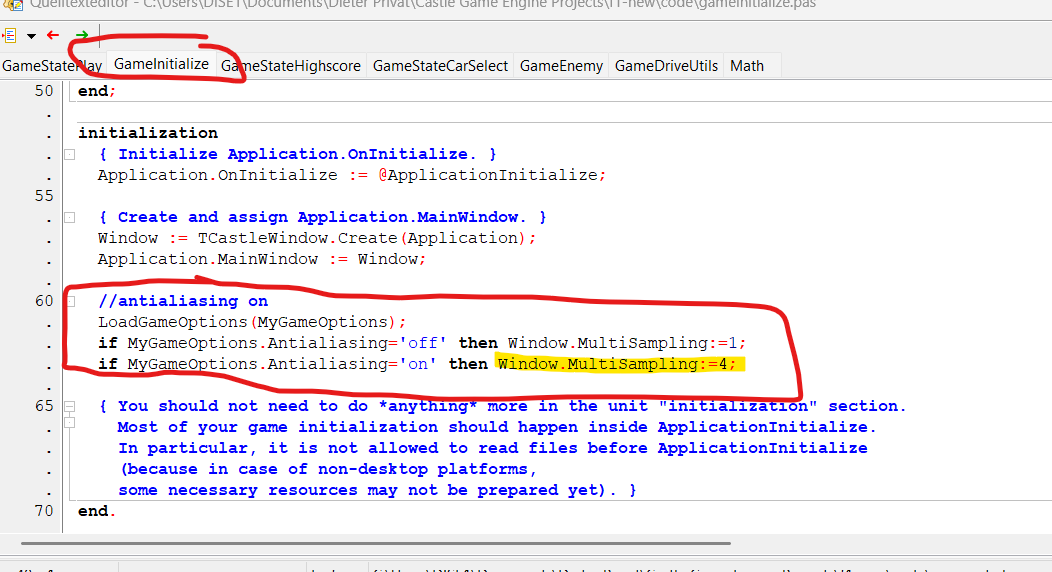

in my case the solution for antialiasing is:

grafik
grafik1052×572 39.3 KB

1 Like
4

Thanks a lot!

5

Oh, I missed this question :slight_smile:

While you can use Window.MultiSampling, as shown by @Didi , I would actually recommend a bit “higher-level” property Window.AntiAliasing. It exposes anti-aliasing as an enum TAntiAliasing, and underneath it controls the MultiSampling as well as using the NV_multisample_filter_hint (which matters on NVidia GPUs).

So e.g.

Window.AntiAliasing := aaNone; // no aa
Window.AntiAliasing := aa2SamplesNicer; // basic aa
Window.AntiAliasing := aa4SamplesNicer; // better aa
1 Like
