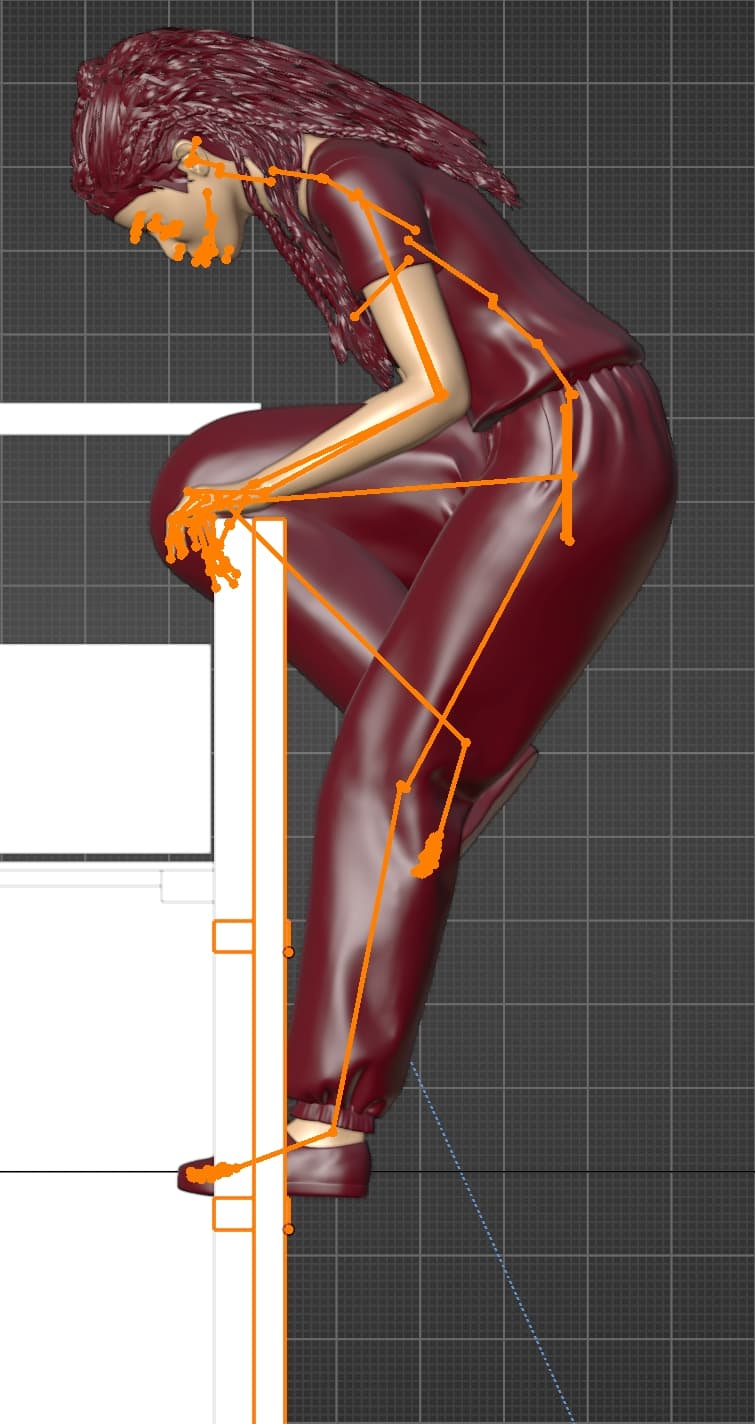

To make it (relatively) short, I’m doing a simulation of structural elements of a furniture, and for that one of the important aspects are ergonomics. I have 3d models of humans so I can simulate the person e.g. taking off the ladder in a bunk bed, as pictured. However, I’d like to make it using CGE. The CGE’s rendering offers good quality, it’s real-time, and it’s Pascal!
But now… Every bone has their min/max angle constraints, obviously. Also, I want to simulate them at optimal angle ranges, people are lazy and easy to injure Let’s say the angle between the upper and lower arm should be somewhere between 90-100 deg for an average person, so every bone needs to have an additional “soft” constraint.
I need to know / control the angles from my code, so I can simulate different options. CGE as a Game Engine is more that suitable for that! In some way my approach is similar to Inverse Kinematics (IK).
My question is: what’s the best option to achieve it in CGE.
I know I can expose the bones inside the editor, which is a really powerful option in CGE - even the smallest bone can be animated. However, the thing is that my skeletons have quite a few bones and iterating would be easier than manually selecting them in the editor. I don’t have the time to experiment much now - I understand that if the CGE editor knows the nodes then I could fetch them too. Is there any simple way to achieve that? Any drawbacks, or better options?
As a side question, my models (including human face expressions, windows size, or rungs distance) are parametric. In Blender, for example, I use Shape Keys to make life easier. Thanks to @michalis I know they’re called Morph Targets in glTF and their support is planned, I refer to Animating 3D meshes without “skeleton” (armature) - Animation - Castle Game Engine Forum. Is there a progress in that area?

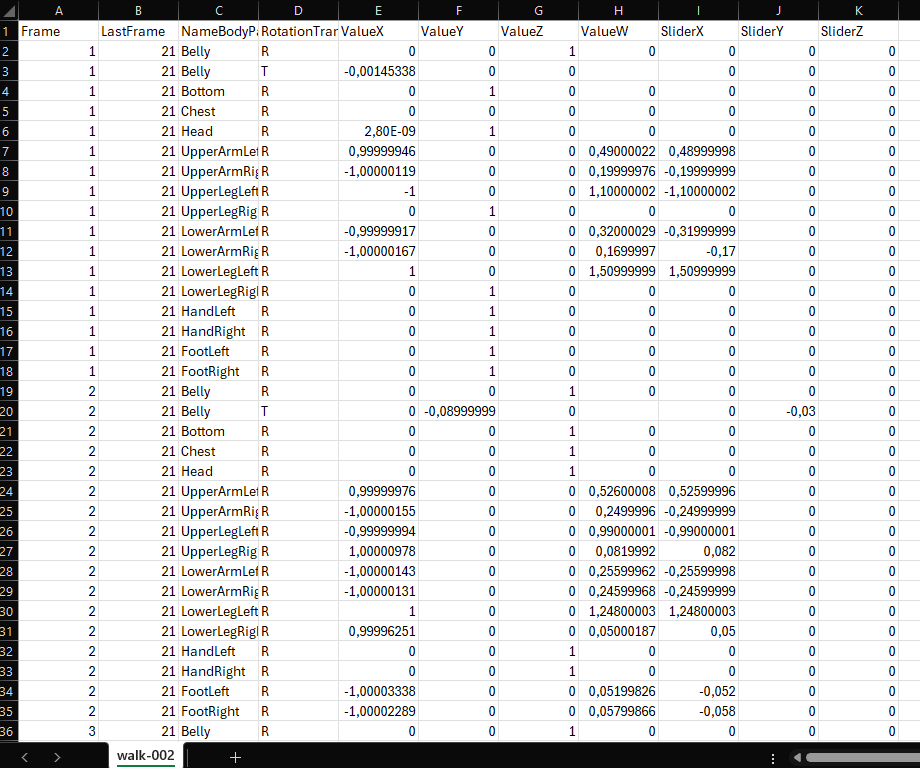

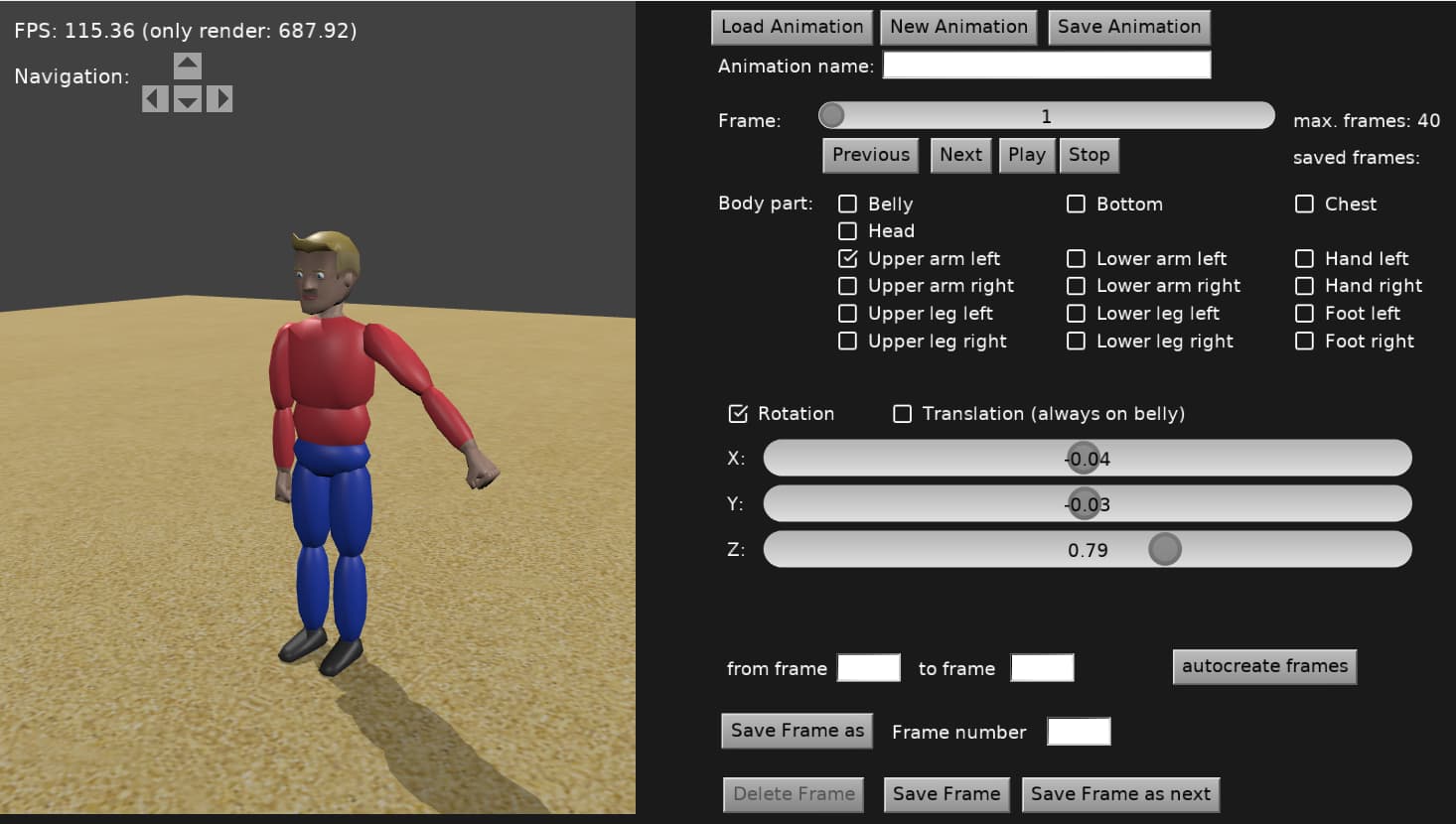

I created an animation editor a while ago. It allows me to assign rotation or translation to individual body parts. The values are saved in a CSV file and read into an array when the program starts. When the animation is run, the value from the array is simply set. I didn’t pursue the project any further, as the performance doesn’t seem to be that great.

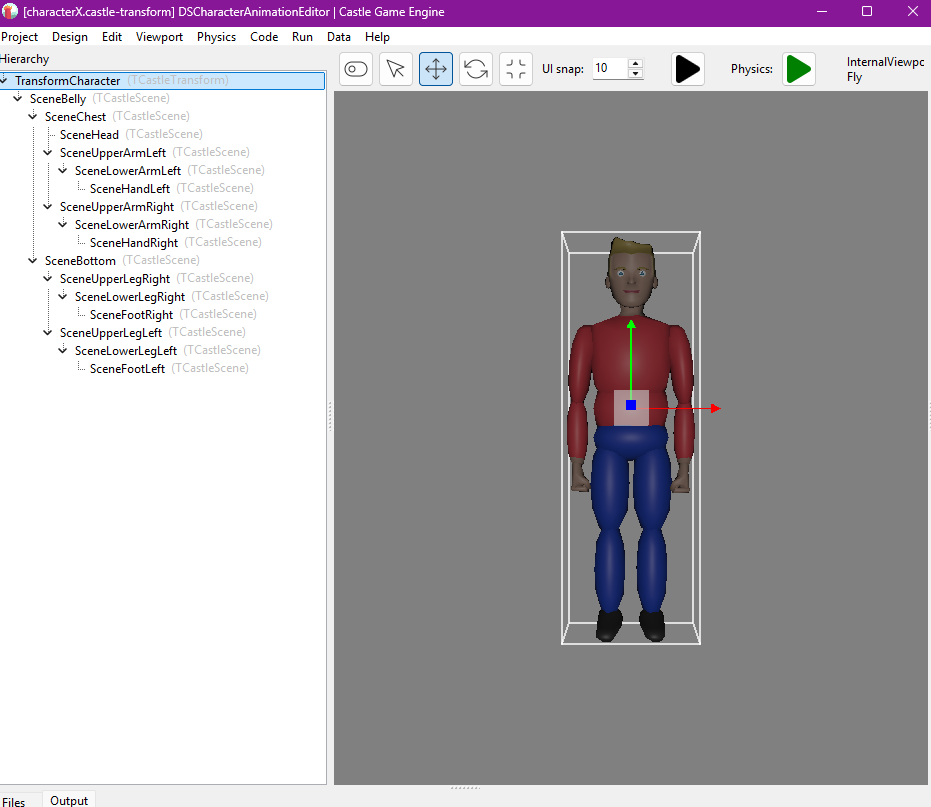

I see you have used separate scenes for the body parts, so programmatically it’ll be easy to implement. My brain cells didn’t consider that approach. But I worry about outfit clipping.
My rigs have at least 41 bones. With skinned animation, and hopefully morphs, I could avoid the clipping and use just 1 whole model.
Another complication is that the models have different shapes - male, female, from thin to obese, high, different age as well. All that would inflate the amount of scenes required. Internally I use morphs - my characters are parametric - so maybe I’d reduce the scenes amount, but it’s really much easier to use some pre-shaped models.
I was thinking about pre-made animations for every part of the body, and then just choose the part-at-frame which would correspond to an angle. It’s conceptually simple, but implementation is complex. Most of the bones have 3 degrees of freedom and can move in a wide range so I’d need a massive animation library, even with binary records instead of CSV. It’s a tedious task too, but would provide best visuals.
Today I’ve done initial tests with ExposeTransform. I could set angles, but the model didn’t respond. I’m now testing different rig formats (MHX and Rigify). I hope to either confirm it or rule out soon.
I’ll keep your solution in my mind, Didi. I think I’ll go with something similar if working directly on bones doesn’t work. Most probably I’ll need to use some mesh corrections based on angles but that’s manageable. “Sticking” a hand to the rail or foot to the floor should be easy that way, too.
Most importantly the animation is baked on load, and ExposeTransforms - although very useable in game development - can’t be used to affect the mesh. Which means direct use of Rotation or manipulating the underlying x3d node will not work.
My understanding is that for most games the animations are recorded at the design time, then just played at runtime. But apart from obvious ability to control the skeleton, Can Copy Animation from SceneA to SceneB - Castle Game Engine Forum could also be done much easier.
Anyway, I’m going to try few more ideas and hopefully I’ll be able to share some good news Have nice weekend everyone!
Yes, I’m using the skinned-animation-gpu branch together with ExposeTransforms, and with that you can have full control over the bones.
This approach works great — it’s actually what most modern games use, especially FPS games.
Usually, animations are pre-baked in tools like Blender and then simply played back during runtime.
You can also control or blend only specific parts of the body depending on the situation in the game.
For example:
Use an animation for the upper body only when the player is aiming, firing, or idle.
Play a separate animation for the lower body while moving forward, backward, left, right, or jumping.
Adjust only the hands or fingers to match different weapon sizes or types.
Note: The Hips bone needs special handling when extracting its values from Blender, since it’s the root bone and behaves differently from its child bones.
Thank you all for the answers above, let me just recap (and confirm what you all already concluded ):
If you want “skinned animation” (so the body is not composed from multiple “rigid” pieces, instead it’s a mesh that bends according to the transformations of invisible joint hierarchy), then admittedly current engine “master” doesn’t have this feature. Skinned animation loaded from glTF is “baked” at the loading time – which makes IK not possible.
Workarounds, like using H-Anim or performing skinned animation calculation yourself, are cumbersome and not really recommended.
A good news is that I’m already working on a much better solution We have the Skin node and skinned-animation-gpu branch, with the example animate_bones_by_code on skinned-animation-gpu branch already pointed above, which are doing+showing exactly what you need
That is, you can then transform the joints (they are just TTransformNode nodes inside TCastleScene X3D nodes), you can change their Translation, Rotation at run-time freely, and they will change the mesh properly.
It is also very efficient (the skinned animation is applied on the mesh using GPU). So it’s very fast to animate, whether the animation was “pre-designed” (like in Blender) or is “calculated at runtime” (like IK), all approaches are fast.
Loading time is also quick and doesn’t use significant memory, since we don’t “precalculate” anything.
Why is this not in master yet?
A few small details – I need to test/fix some testcases I found.
And I need to implement “bounding box calculation for the animation”. Currently you need to assign proper bounding box explicitly, but that’s not good for “general” usage I think, since most models “in the wild” don’t have such information (glTF models also don’t have it).
The issue is that the final vertexes positions are only calculated on GPU (so not known by CPU, in our normal memory). This makes it problematic to use frustum culling – a model could disappear from the view when it should not, because CPU code would think that bounding box of the model is not visible.
But I need to fix it, without “bringing back” the animation processing at loading-time, which would kind of bring back some of the problems of current “master” approach (slow loading time).
I devised a solution to this, to be able to sample animation (some frames, some vertexes) fast on CPU. I even extended the idea, to allow something more in the future – to enable to have one TCastleScene visible multiple times in the world with different animations throughout (so it would be almost as efficient as using TCastleTransformReference, but at the same time allow different animations on characters, so it can be used e.g. to render realistic crowds).
Alas, it takes time to finish it
Long story short: if you’re brave, and familiar with CGE enough (which I know all 3 people in this thread are!) I would say to “try to use skinned-animation-gpu branch already, and let me know if there are problems”.
Let’s say the angle between the upper and lower arm should be somewhere between 90-100 deg for an average person, so every bone needs to have an additional “soft” constraint.
Have nice weekend everyone!
